Messier 17: Omega Nebula

  • by

Messier 17 (M17), also known as the Omega Nebula, is a famous star-forming nebula located in the southern constellation Sagittarius. The diffuse emission nebula lies near the constellation’s northern border with Scutum, at a distance of 5,000 to 6,000 light years from Earth. It has an apparent magnitude of 6.0.

Also known as the Swan Nebula, Lobster Nebula, Horseshoe Nebula and Checkmark Nebula, the Omega Nebula is one of the brightest star-forming nebulae of the Milky Way. Its designation in the New General Catalogue is NGC 6618. With a total mass of roughly 800 solar masses, M17 is also one of the most massive H II regions of our galaxy. The nebula occupies an area roughly 15 light years in diameter and is part of a larger cloud, which is about 40 light years in diameter.

Messier 17 is located in the Sagittarius Arm of the Milky Way, the next inward spiral arm to our own, and may be part of the same giant cloud complex as its close neighbour, Messier 16 (the Eagle Nebula), located in the constellation Serpens.

The Omega Nebula is just on the limit of naked eye detection in good conditions, with clear, dark skies and no light pollution. It is best observed in low-powered telescopes and binoculars. It lies in the same binocular field of view as Messier 16 and Messier 18, a faint open cluster in Sagittarius.

messier 17,omega nebula,m17,m17 nebula

This new image of the rose-coloured star forming region Messier 17 was captured by the Wide Field Imager on the MPG/ESO 2.2-metre telescope at ESO’s La Silla Observatory in Chile. It is one of the sharpest images showing the entire nebula and not only reveals its full size but also retains fine detail throughout the cosmic landscape of gas clouds, dust and newborn stars. Image: ESO, 2015

Messier 17 is relatively easy to locate using the stars of the Teapot in Sagittarius. An imaginary line drawn from Kaus Australis past just to the left of Kaus Media to the north leads directly to M16 and M17.

The Omega Nebula lies just to the south of the Eagle Nebula. Two other famous nebulae – the Trifid Nebula (Messier 20) and the Lagoon Nebula (Messier 8) are located in the same part of the sky.

messier 17 location,messier objects in sagittarius

Omega Nebula location. Image: Wikisky

Messier 17 can also be found by star-hopping from the bright Altair in the constellation Aquila down the eagle’s back toward Gamma Scuti in the constellation Scutum. M16 and M17 lie just to the southwest of the star.

The best time of year to observe the Omega Nebula and its neighbours is in the summer months, when Sagittarius hovers over the southern horizon in the evening.

Messier 17 contains an open cluster of 35 hot, young stars which are responsible for the nebula’s glow. The cluster is only 1 million years old, which makes it one of the youngest known clusters in our galaxy.

omega nebula stars,stellar nursery

Astronomers using data from ESO’s Very Large Telescope (VLT), at the Paranal Observatory in Chile, have made an impressive composite of the nebula Messier 17, also known as the Omega Nebula or the Swan Nebula. The painting-like image shows vast clouds of gas and dust illuminated by the intense radiation from young stars. The image shows a central region about 15 light-years across, although the entire nebula is even larger, about 40 light-years in total. Messier 17 is in the constellation of Sagittarius (the Archer), about 6000 light-years from Earth. It is a popular target for amateur astronomers, who can obtain good quality images using small telescopes.
These deep VLT observations were made at near-infrared wavelengths with the ISAAC instrument. The filters used were J (1.25 µm, shown in blue), H (1.6 µm, shown in green), and K (2.2 µm, shown in red). In the centre of the image is a cluster of massive young stars whose intense radiation makes the surrounding hydrogen gas glow. To the lower right of the cluster is a huge cloud of molecular gas. At visible wavelengths, dust grains in the cloud obscure our view, but by observing in infrared light, the glow of the hydrogen gas behind the cloud can be seen shining faintly through. Hidden in this region, which has a dark reddish appearance, the astronomers found the opaque silhouette of a disc of gas and dust. Although it is small in this image, the disc has a diameter of about 20 000 AU, dwarfing our Solar System (1 AU is the distance between the Earth and the Sun). It is thought that this disc is rotating and feeding material onto a central protostar — an early stage in the formation of a new star. Credit: ESO/R. Chini

The Omega Nebula is home to up to 800 stars, including nine stars of spectral type O and about 100 of spectral type earlier than B9. Additionally, there are more than a thousand stars in the process of forming in the nebula’s outer regions.

The young stars in M17 do not readily appear in visible light images, but are hidden within the nebula’s dust and gas. Even the light of the 35 brightest stars is obscured by the surrounding nebulosity.

Messier 17 has a similar geometry to Messier 42, the famous Orion Nebula, but unlike M42, which appears face-on, M17 is seen edge-on. The Omega Nebula is considerably richer in star-forming material and young stars than M42, and it is also much more distant. The Orion Nebula lies some 1,300 light away from Earth and is located in the Orion Arm of the Milky Way, the same spiral arm that is home to our solar system.

messier 17 infrared,omega nebula infrared

NASA’s Spitzer Space Telescope has captured a new, infrared view of the choppy star-making cloud called M17, also known as the Omega Nebula or the Swan Nebula. The cloud, located about 6,000 light-years away in the constellation Sagittarius, is dominated by a central group of massive stars — the most massive stars in the region (see yellow circle). These central stars give off intense flows of expanding gas, which rush like rivers against dense piles of material, carving out the deep pocket at center of the picture. Winds from the region’s other massive stars push back against these oncoming rivers, creating bow shocks like those that pile up in front of speeding boats.
Three of these bow shocks are labeled in the magnified inset. They are composed of compressed gas in addition to dust that glows at infrared wavelengths Spitzer can see. The smiley-shaped bow shocks curve away from the stellar winds of the central massive stars. This picture was taken with Spitzer’s infrared array camera. It is a four-color composite, in which light with a wavelength of 3.6 microns is blue; 4.5-micron light is green; 5.8-micron light is orange; and 8-micron light is red. Dust is red, hot gas is green and white is where gas and dust intermingle. Foreground and background stars appear scattered through the image. Credit: NASA/JPL-Caltech/M. Povich (Univ. of Wisconsin)

Two blue hypergiants are believed to be associated with M17. HD 168607, a luminous blue variable (LBV), has a visual magnitude of 8.25 and can be seen in amateur telescopes. The star forms a pair with another blue hypergiant and suspected luminous blue variable, HD 168625, that lies just southeast of the nebula. HD 168607 is 240,000 times more luminous than the Sun, while HD 168625 has 220,000 solar luminosities.

The nebula’s O-type stars and blue hypergiants will likely end their life in Type II supernova explosions in the not-too-distant future, astronomically speaking.

m17,omega nebula

Messier 17 (Omega Nebula). Image: Two Micron All Sky Survey (2MASS), a joint project of the University of Massachusetts and the Infrared Processing and Analysis Center/California Institute of Technology, funded by the National Aeronautics and Space Administration and the National Science Foundation.

The Omega Nebula was discovered by the Swiss astronomer Jean-Philippe Loys de Chéseaux in 1745. It is one the six nebulae listed in his catalogue. This is what de Chéseaux reported:

Finally, another nebula, which has never been observed. It is of a completely different shape than the others: It has perfectly the form of a ray, or of the tail of a comet, of 7′ length and 2′ broadth; its sides are exactly parallel and rather well terminated, as are its two ends. Its middle is whiter than the borders; I have found its RA for this year as 271d 32′ 35″ and its southern declination as 16d 15′ 6″. It has an angle [PA] of 50 deg with the meridian.

omega nebula

The photograph, taken by NASA’s Hubble Space Telescope, captures a small region within M17, a hotbed of star formation. M17, also known as the Omega or Swan Nebula, is located about 5500 light-years away in the constellation Sagittarius. The wave-like patterns of gas have been sculpted and illuminated by a torrent of ultraviolet radiation from young, massive stars, which lie outside the picture to the upper left. The glow of these patterns accentuates the three-dimensional structure of the gases. The ultraviolet radiation is carving and heating the surfaces of cold hydrogen gas clouds. The warmed surfaces glow orange and red in this photograph. The intense heat and pressure cause some material to stream away from those surfaces, creating the glowing veil of even hotter greenish gas that masks background structures. The pressure on the tips of the waves may trigger new star formation within them. The image, roughly 3 light-years across, was taken May 29-30, 1999, with the Wide Field Planetary Camera 2. The colors in the image represent various gases. Red represents sulfur; green, hydrogen; and blue, oxygen. Image: NASA, ESA and J. Hester (ASU)

The nebula was independently discovered by Charles Messier on June 3, 1764. Messier described it as a “train of light without stars, of 5 or 6 minutes in extent, in the shape of a spindle, & a little like that in Andromeda’s belt [Messier 31] but of a very faint light; there are two telescopic stars nearby & placed parallel to the equator. In a good sky one observes this nebula very well in an ordinary telescope of 3.5-foot [FL].”

His entry in the first Messier catalogue (1771) read:

In the same night [June 3 to 4, 1764], I have discovered at little distance of the cluster of stars of which I just have told, a train of light of five or six minutes of arc in extension, in the shape of a spindle, & in almost the same [shape] as that in the girdle of Andromeda [M31]; but of a very faint light, not containing any star; one can see two of them nearby which are telescopic & placed parallel to the Equator: in a good sky one perceives very well that nebula with an ordinary [non-achromatic] refractor of 3 feet & a half [FL]. I have determined its position in right ascension of 271d 45′ 48″, & its declination of 16d 14′ 44″ south.

messier 17,m17

Three-colour composite of the sky region of M 17, a H II region excited by a cluster of young, hot stars. A large silhouette disc has been found to the south-west of the cluster centre. The present image was obtained with the ISAAC near-infrared instrument at the 8.2-m VLT ANTU telescope at Paranal. Image: ESO

William Herschel observed M17 on a number of occasions and provided the following description in June 1784:

A wonderful nebula. Very much extended, with a hook on the preceding [western] side; the nebulosity of the milky kind; several stars visible in it, but they seem to have no connection with the nebula, which is far more distant. I saw it only through short intervals of flying clouds and haziness; but the extent of the light including the hook is above 10′. I suspect besides, that on the following [eastern] side it goes on much farther and diffuses itself towards the north and south. It is not of equal brightness throughout and has one or more places where the milky nebulosity seems to degenerate into the resolvable [mottled] kind; such a one is that just following the hook towards the north. Should this be confirmed on a very fine night, it would bring on the step between these two nebulosities which is at present wanting, and would lead us to surmise that this nebula is a stupendous stratum of immensely distant fixed stars, some of whose branches come near enough to us to be visible as a resolvable nebulosity, while the rest runs on to so great a distance as only to appear under the milky form.

messier 17 sketch

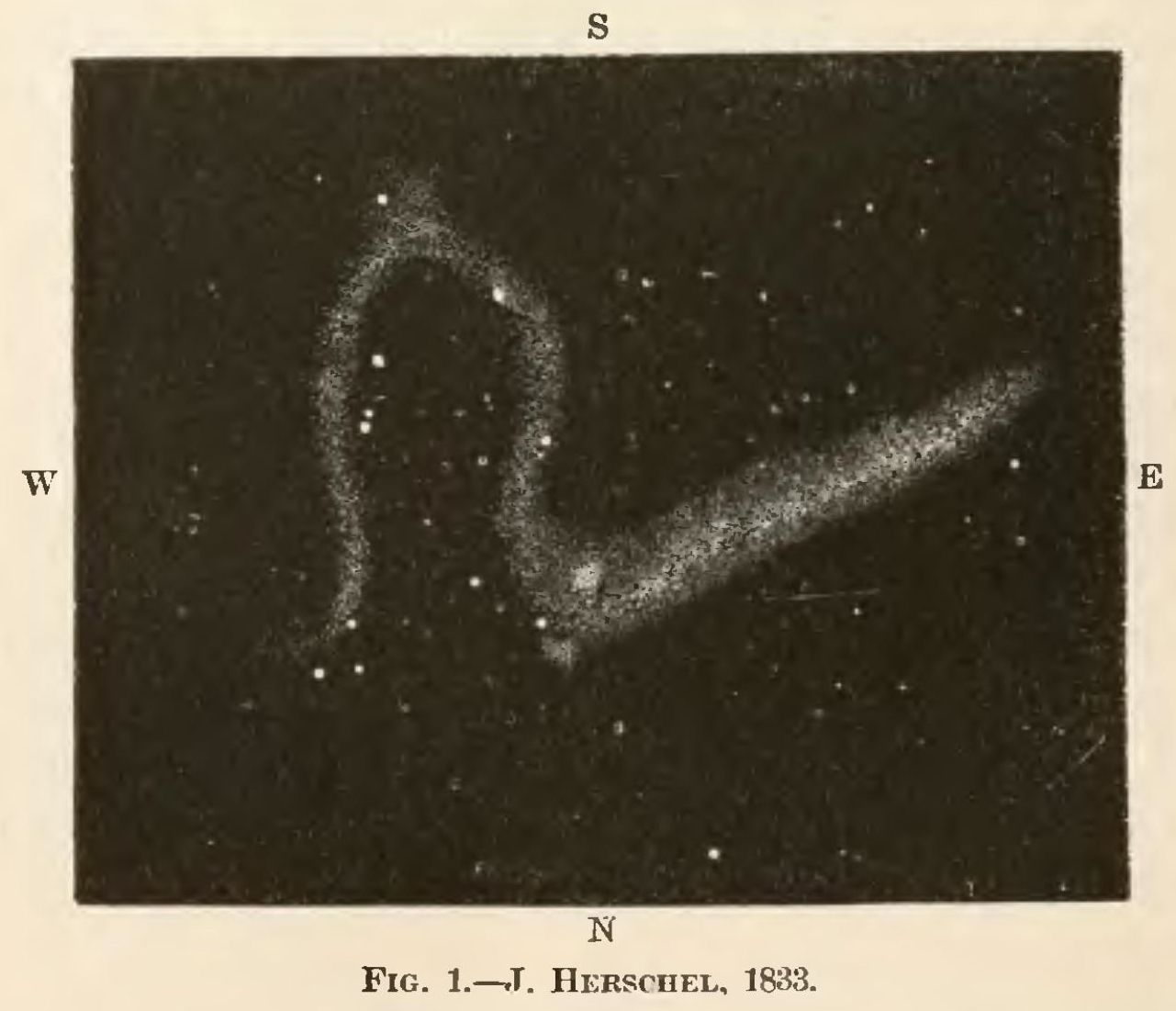

Omega Nebula sketch by John Herschel, 1833

John Herschel, William Herschel’s son, was the one who noted the nebula’s resemblance to the Greek capital letter omega (Ω). He was the first to accurately draw M17 in 1833 and published his drawing as part of a series of sketches of nebulae in 1836. He wrote:

The figure of this nebula is nearly that of the Greek capital Omega, somewhat distorted and very unequally bright. It is remarkable that this is the form usually attributed to the great nebula in Orion, though in that nebula I confess I can discern no resemblence whatever to the Greek letter. Messier perceived only the bright preceding branch of the nebula now in question, without any of the attached convolutions which were first noticed by my Father. The chief peculiarities which I have observed in it are, 1st, the resolvable knot in the following portion of the bright branch, which is in a considerable degree insulated from the surrounding nebula; strongly suggesting the idea of an absorption of nebulous matter; and 2ndly, the much feebler and smaller knot in the north preceding end of the same branch, where the nebula makes a sudden bend at an acute angle. With a view to a more exact representation of this curious nebula, I have at different times taken micrometrical measures of the relative places of the stars in and near it, by which, when laid down on the chart, its limits may be traced and identified, as I hope soon to have better opportunity to do than its low situation in this latitudes will permit.

messier 17 drawing

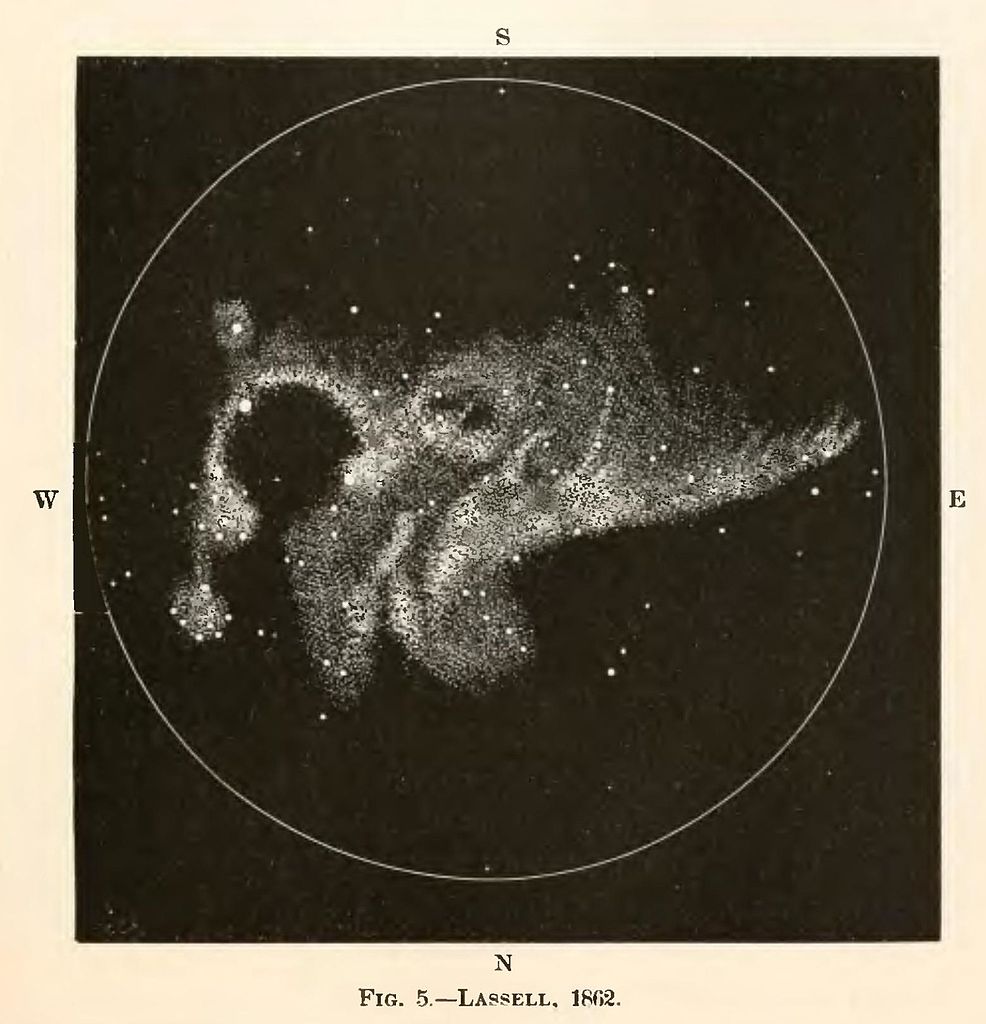

Messier 17, as drawn by William Lassell in 1862. Source: Popular Science Monthly Volume 8.

English astronomer William Lassell also made a sketch of the Omega Nebula in 1862 using a 4-foot telescope at Malta, as did Edward Singleton Holden and M. Étienne Léopold Trouvelot in 1875, using a 26-inch refractor of the United States Naval Observatory at Foggy Bottom, Washington, DC.

m17 sketch,m17 drawing

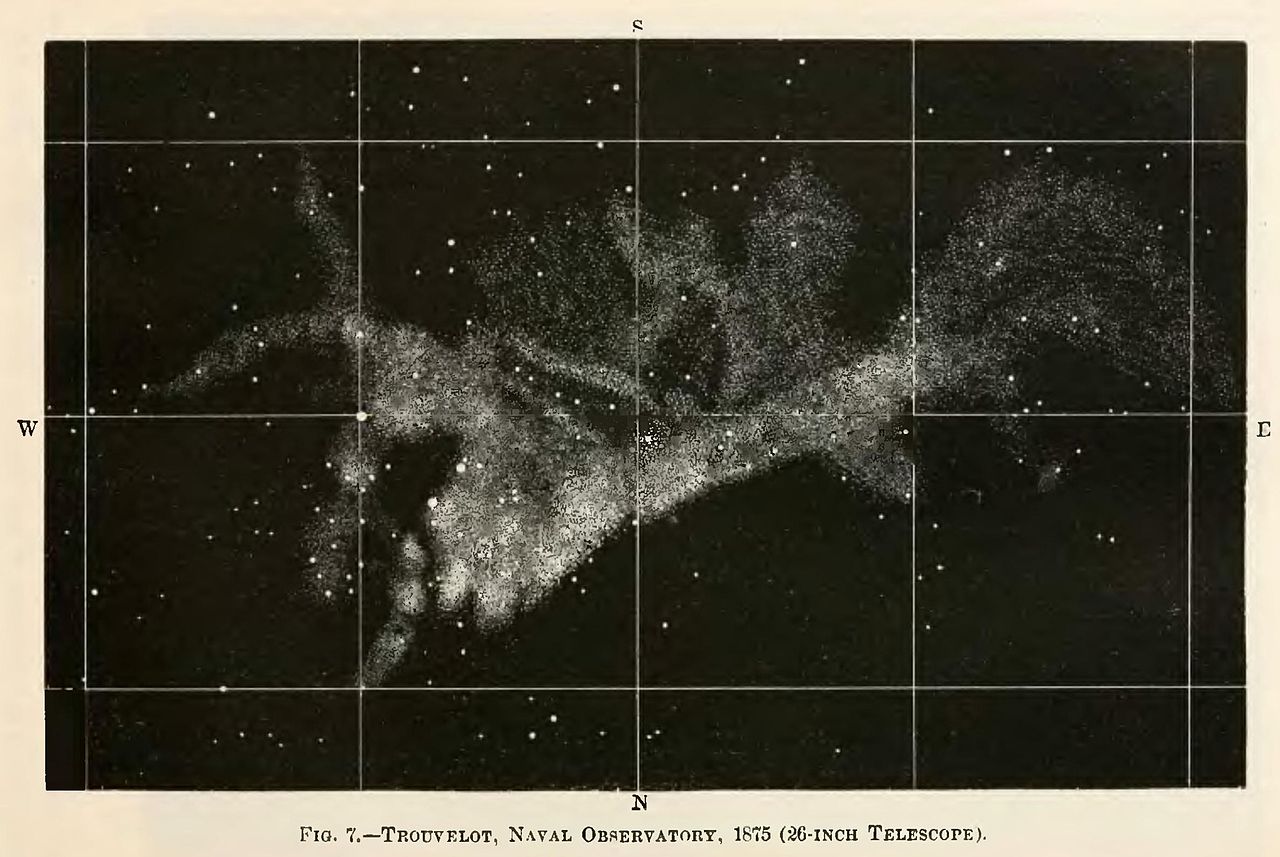

Omega Nebula sketch by M. Étienne Léopold Trouvelot, Naval Observatory, 1875

Admiral William Henry Smyth observed the nebula in August 1836 and compared its shape to that of a horseshoe:

The horse-shoe, or Greek-omega Omega, nebula, just below Sobieski’s shield; discovered by M. Messier in 1764, and registered as a train of light without stars, about 5′ or 6′ in extent. As with the two preceding objects [M16 and M18], its place hangs upon Mu Sagittarii, from which it bears north-by-east, about 5deg distant, in the line towards Epsilon Aquilae. In my telescope charged with a moderate [magnification] eye-piece, this curious nebula is well seen, though not to the extent of convolution figured by Sir John Herschel. A magnificient, arched, and irresolvable luminosity occupies more than one third of the area, in a splendid group of stars, among which are Nos. 38 and 43, Hora XVIII. of Piazzi; they are principally from the 9th to the 12th magnitudes, reaching more or less all over the field, somewhat in the accompanying form.

FACTS

Object: Nebula
Type: Emission
Designations: Omega Nebula, Messier 17, M17, NGC 6618, Sharpless 45, RCW 160, Gum 81, Collinder 377, LBN 60, Swan Nebula, Lobster Nebula, Horseshoe Nebula, Checkmark Nebula
Constellation: Sagittarius
Right ascension: 18h 20m 26s
Declination: -16°10’36”
Distance: 5,000-6,000 light years (1,533-1,840 parsecs)
Apparent magnitude: +6.0
Apparent dimensions: 11′

LOCATION

omega nebula location,find messier 17

Messier 17 location. Image: IAU and Sky & Telescope magazine (Roger Sinnott & Rick Fienberg)

IMAGES

omega nebula,swan nebula,m17

The first released VST image shows the spectacular star-forming region Messier 17, also known as the Omega Nebula or the Swan Nebula, as it has never been seen before. This vast region of gas, dust and hot young stars lies in the heart of the Milky Way in the constellation of Sagittarius (The Archer). The VST field of view is so large that the entire nebula, including its fainter outer parts, is captured — and retains its superb sharpness across the entire image. Image: ESO/INAF-VST/OmegaCAM. Acknowledgement: OmegaCen/Astro-WISE/Kapteyn Institute

messier 17 centre,m17 very large telescope

This image of the Omega Nebula (Messier 17), captured by ESO’s Very Large Telescope (VLT), is one of the sharpest of this object ever taken from the ground. It shows the dusty, rosy central parts of the famous star-forming region in fine detail. Image: ESO

messier 17 composite,m17 eso

Three-colour composite image of the Omega Nebula (Messier 17, or NGC 6618), based on images obtained with the EMMI instrument on the ESO 3.58-metre New Technology Telescope at the La Silla Observatory. North is down and East is to the right in the image. It spans an angle equal to about one third the diameter of the Full Moon, corresponding to about 15 light-years at the distance of the Omega Nebula. The three filters used are B (blue), V (“visual”, or green) and R (red). Image: ESO

swan nebula,swan nebula centre

This image shows the center of the Swan Nebula, or M 17, a hotbed of newly born stars wrapped in colorful blankets of glowing gas and cradled in an enormous cold, dark hydrogen cloud. This stunning picture was taken by the newly installed Advanced Camera for Surveys (ACS) aboard the NASA/ESA Hubble Space Telescope. Image: NASA, Holland Ford (JHU), the ACS Science Team and ESA

omega nebula near infrared image

This image is a near-infrared, colour-coded composite image of a sky field in the south-western part of the galactic star-forming region Messier 17 . It is based on exposures obtained on August 15, 2000, with the SOFI multi-mode instrument at the ESO 3.6-m New Technology Telescope (NTT) at La Silla. In this image, young and heavily obscured stars are recognized by their red colour. Bluer objects are either foreground stars or well-developed massive stars whose intense light ionizes the hydrogen in this region. The diffuse light that is visible nearly everywhere in the photo is due to emission from hydrogen atoms that have (re-)combined from protons and electrons. The dark areas are due to obscuration of the light from background objects by large amounts of dust – this effect also causes many of those stars to appear quite red. A cluster of young stars in the upper-left part of the photo, so deeply embedded in the nebula that it is invisible in optical light, is well visible in this infrared image. Technical information : The exposures were made through three filtres, J (at wavelength 1.25 µm; exposure time 5 min; here rendered as blue), H (1.65 µm; 5 min; green) and Ks (2.2 µm; 5 min; red); an additional 15 min was spent on separate sky frames. The seeing was 0.5 – 0.6 arcsec. The objects in the uppermost left corner area appear somewhat elongated because of a colour-dependent aberration introduced at the edge by the large-field optics. The sky field shown measures approx. 5 x 5 arcmin 2 (corresponding to about 3% of the full moon). North is up and East is left. Image: ESO
